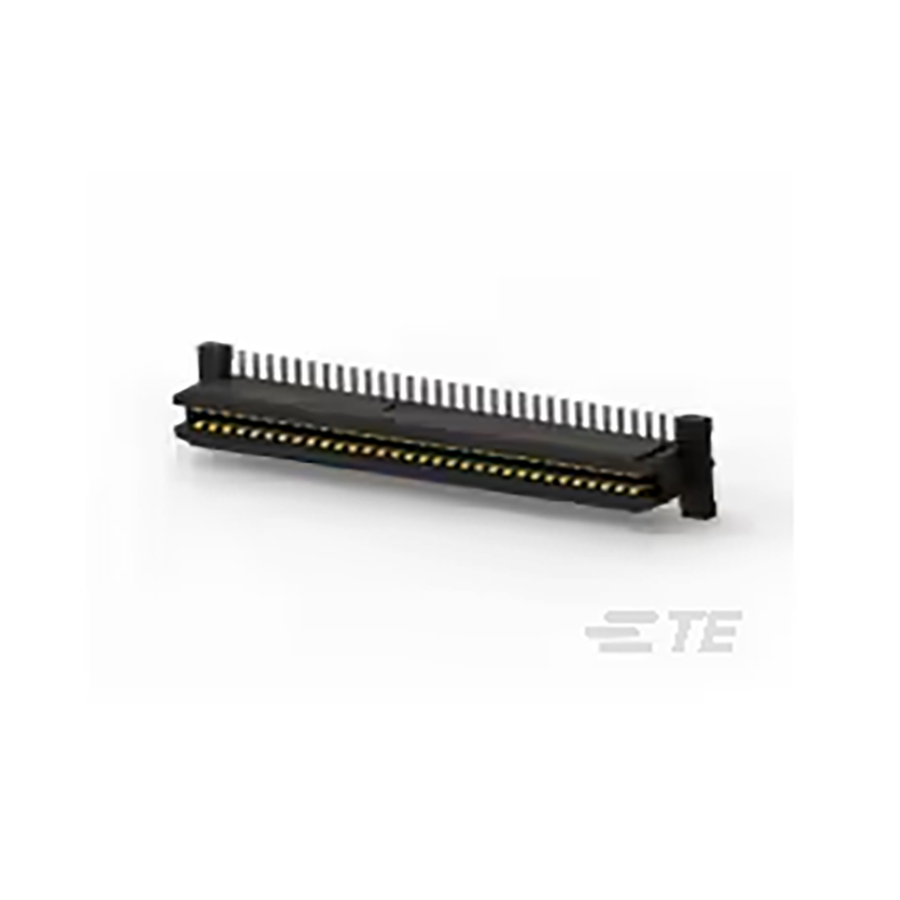

5120521-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5120521-1
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Outer Shroud Contacts Number of Positions:64 Pitch:1 mm
| Parameter | Value |
|---|---|
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin, Gold, Tin over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 1 mm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Active |
| Gender | Female |
| Number of Contacts | 64 |
| Mounting Style | Through Hole, Surface Mount, Vertical, PCB |
| lead free status | Lead Free |
| operating temperature | -55.0 °C to 110 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| size width | 6.05 mm |
| size length | 35.9 mm |
| size height | 5.37 mm |
| elv compliant | Compliant |
| Housing Color | Black |
| pin pitch | 1.00 mm |
Stock: 2065
Distributors
pcbx
pcbxUnit Price$3.91679
Ext.Price$3.91679
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.91679 | $3.91679 |
| 10 | $3.32870 | $33.28700 |
| 25 | $3.11972 | $77.99300 |
| 50 | $2.97080 | $148.54000 |
| 100 | $2.82889 | $282.88900 |
| 300 | $2.63101 | $789.30300 |
| 500 | $2.44699 | $1223.49500 |
